CCTV 8CH. NVR TTC-8108

Home > >>CCTV 8CH. NVR TTC-8108

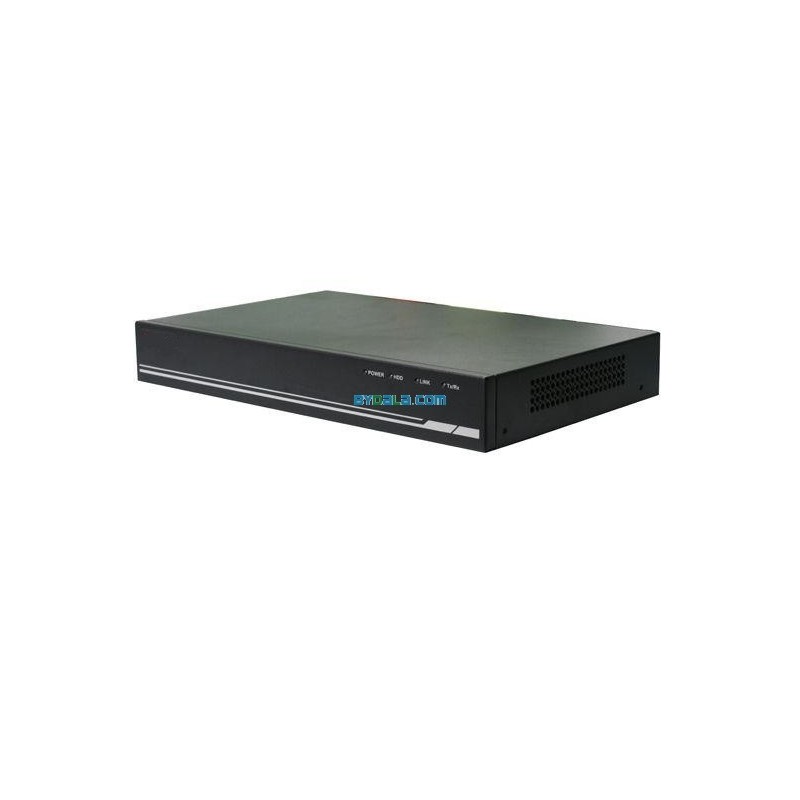

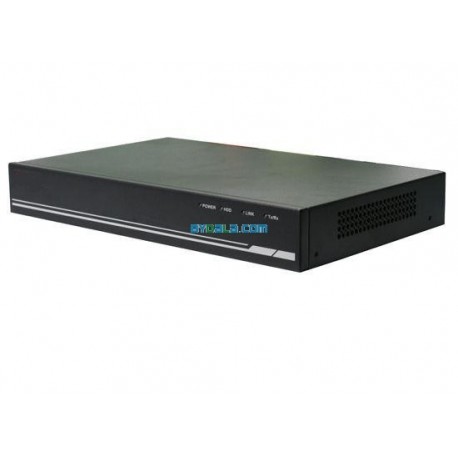

CCTV 8CH. NVR View larger

CCTV 8CH. NVR TTC-8108

New product

  • Up to 8 cameras with 1080p realtime preview
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview&playback
  • HDMI/VGA/BNC simultaneous video output
  • 4 channel synchronous realtime playback, GRID interface

More details

10 Items

1 380 000KIP tax incl.

Add to wishlist

More info

CCTV 8CH. NVR

Model
TTC-8108
Main Processor
Dual-core embedded processor
Operating System
Embedded LINUX
Video Input
8 channel
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video/Audio Compression
H.264/MJPEG
Image Resolution
5Mp(2560×1920)/3Mp(2048×1536)/ 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Bit Rate
48~8192Kb/s
Recording Mode
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Recording Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Motion Detection
Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank
Alarm Input
4 channel
OUT : 2 channel
Search Mode
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device/Network/Internal SATA Device

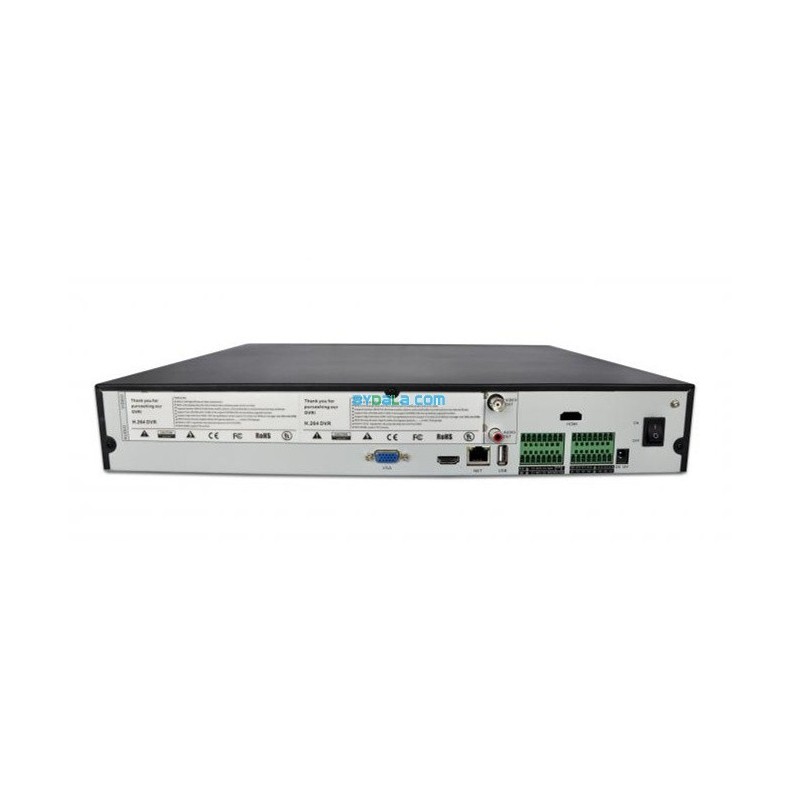

Interface
1 HDMI, 1 VGA
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Hard Disk
2 SATA ports, up to 8TB, Raid (Redundancy)
USB Interface
2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232
1 port, For PC communication & Keyboard
RS485
1 port For PTZ control
Power Supply
DC12V/4A , PoE DC48V/1.04A
Power Consumption
20W (without HDD)
PoE: Max.25.5W for single port
Working Environment
-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension
1U, 375mm×285mm×50mm
Weight
2.0KG(without HDD)
Display Split
1/4/9
Smart Phone
iPhone, iPad, Android, Windows Phone
User Access
128 users
Two-way Talk
1 channel Input, 1 channel Output, BNC
Record Rate / Main Stream
200Mbps
Sync Playback
1/4/8/9
Ethernet
1 RJ-45 port (10/100M/1000M)
PoE : 4 ports (IEEE802.3af)

Reviews

No customer reviews for the moment.

Write a review

CCTV 8CH. NVR TTC-8108

CCTV 8CH. NVR TTC-8108

  • Up to 8 cameras with 1080p realtime preview
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview&playback
  • HDMI/VGA/BNC simultaneous video output
  • 4 channel synchronous realtime playback, GRID interface
