IP-COM W36AP The AC1200 Dual Band Gigabit In-Wall Access Point

Home > >>IP-COM W36AP The AC1200 Dual Band Gigabit In-Wall Access Point

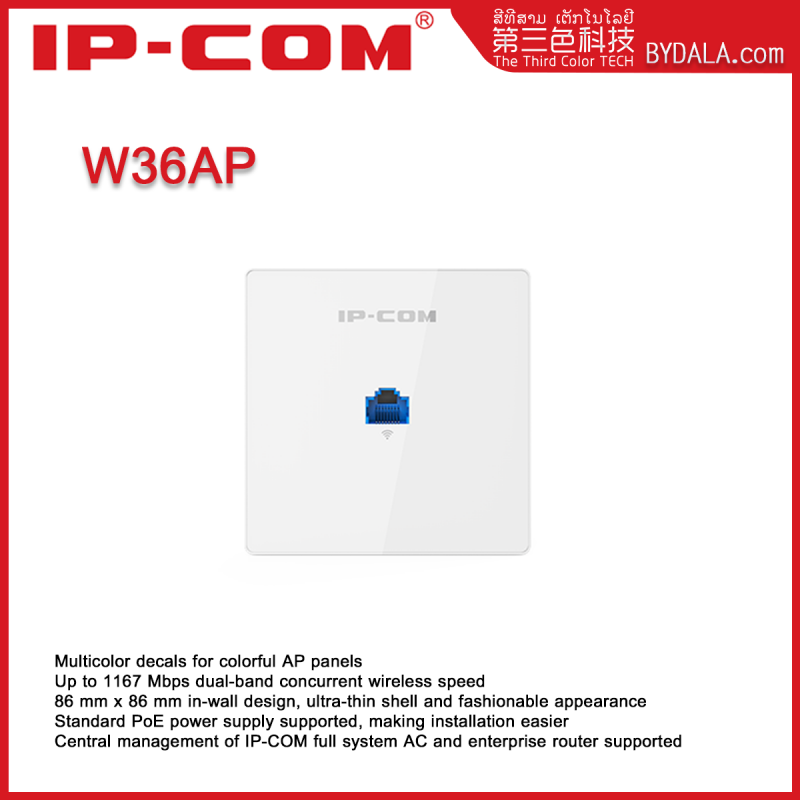

IP-COM W36AP The AC1200 Dual Band Gigabit In-Wall Access Point View larger

IP-COM W36AP The AC1200 Dual Band Gigabit In-Wall Access Point

New product

  • Multicolor decals for colorful AP panels
  • Up to 1167 Mbps dual-band concurrent wireless speed
  • 86 mm x 86 mm in-wall design, ultra-thin shell and fashionable appearance
  • Standard PoE power supply supported, making installation easier
  • Central management of IP-COM full system AC and enterprise router supported

More details

99 Items

900 000KIP tax incl.

Add to wishlist

More info

Product Information
Product Model W36AP
Product Appearance In-wall access point
Product Dimension 86 x 86 x 32 mm
Application Scenarios WiFi coverage for large-sized apartments/villas/hotel rooms
Hardware Specifications
Working Frequency Band 2.400 – 2.4835 GHz, 5.15 0 – 5.250 GHz
Wireless Protocol Standard IEEE 802.11a/b/g/n/ac
2.4 GHz Access Rate 1-300Mbps
5 GHz Access Rate 6-867Mbps
2.4 GHz Maximum Connections 128
5 GHz Maximum Connections 128
Ethernet Port 2 10/100/1000 Base TX ports
Reset Button 1 reset button
LED Indicators 1 x SYS LED indicator and 1 x LAN LED indicator
Power Consumption of the Whole Device Full load 7.8 W
Power Supply Mode IEEE 802.3af
2.4 GHz Antenna Gain 4 dBi
5 GHz Antenna Gain 4 dBi
2.4 GHz Output Power 20+/-1.5 dBm
5 GHz Output Power 16+/-1.5 dBm
11b 1 Mbps Received Sensitivity -95 dBm
11n MCS7 Received Sensitivity -73 dBm
11a 6 Mbps Received Sensitivity -93 dBm
11ac MCS7 Received Sensitivity -75 dBm
Software Specifications
Operating Mode AP, Client + AP
SSID Hide Supported
2.4 GHz SSID Number 8
5 GHz SSID Number 4
Chinese SSID Supported
WEP 64/128 bit encryption supported
WPA-PSK AES/TKIP
WPA2-PSK AES/TKIP
WPA Supported
WPA2 Supported
Wireless Access Control MAC address-based filtering supported
TX Power Adjustment Supported
SSID Isolation Supported
AP Isolation Supported
Wireless User Access Limit Supported
Weak Signal Client Access Limit Supported
WMM Supported
5 GHz Band Navigation (5 GHz Priority) Supported
Multicast to Unicast Supported
Detection Broadcast Message Reply Inhibition Supported
Access Control Supported
VLAN and SSID Binding Supported
LED Control Supported
Diagnostic Tool ping
Timed Reboot Supported
Cyclic Reboot Supported
Device Management Web management
Uplink Detection Supported
Hardware Watchdog Supported
Remote Log Management Supported
Logs System log
Firmware Upgrade Local upgrade and upgraded by AC
Reboot Local reboot and rebooted by AC
Reset Local reset and reset by AC
Backup Supported
Restore Supported
AC Management AC1000/AC2000/AC3000 supported
Working Environment
Default Login IP Address 192.168.0.254
Default User Name admin
Default User Name admin
Operating Temperature -10°C to 45°C
Operating Humidity 10% - 90% RH (non-condensing)
Storage Temperature -30°C to 70°C
Storage Humidity 10% - 90% RH (non-condensing)

Reviews

No customer reviews for the moment.

Write a review

IP-COM W36AP The AC1200 Dual Band Gigabit In-Wall Access Point

IP-COM W36AP The AC1200 Dual Band Gigabit In-Wall Access Point

  • Multicolor decals for colorful AP panels
  • Up to 1167 Mbps dual-band concurrent wireless speed
  • 86 mm x 86 mm in-wall design, ultra-thin shell and fashionable appearance
  • Standard PoE power supply supported, making installation easier
  • Central management of IP-COM full system AC and enterprise router supported
