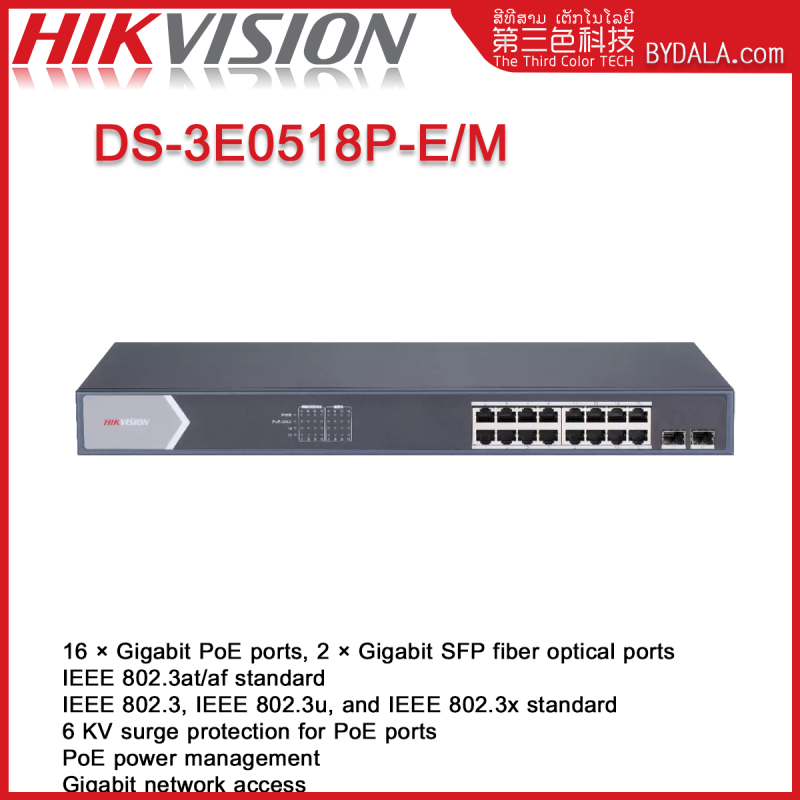

Hikvision DS-3E0518P-E/M 16 Port Gigabit Unmanaged POE Switch

Hikvision DS-3E0518P-E/M 16 Port Gigabit Unmanaged POE Switch View larger

Hikvision DS-3E0518P-E/M 16 Port Gigabit Unmanaged POE Switch

New product

16 Port Gigabit Unmanaged POE Switch

  • 16 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports
  • IEEE 802.3at/af standard
  • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
  • 6 KV surge protection for PoE ports
  • PoE power management
  • Gigabit network access
  • Wire-speed forwarding
  • Store-and-forward switching
  • Solid high-strength metal shell

More details

99 Items

3 120 000KIP tax incl.

Add to wishlist

More info

  • Network Parameters
  • Ports16 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • MAC Address Table8 K
  • Switching Capacity36 Gbps
  • Packet Forwarding Rate26.784 Mpps
  • Internal Cache4.1 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power PinEnd-span: 1/2(-), 3/6(+)
  • PoE PortPorts 1 to 16
  • Max. Port Power30 W
  • PoE Power Budget125 W
  • General
  • Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
  • ShellMetal material, fan-free design
  • Gross Weight2.50 kg (5.51 lb)
  • Net Weight3.57 kg (7.87 lb)
  • Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply100 to 240 VAC, 50/60 Hz, 2.5 A (Max)
  • Power Consumption In Idle25 W
  • Max. Power Consumption150 W
  • Approval
  • EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 12)
  • SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2022)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2011)
