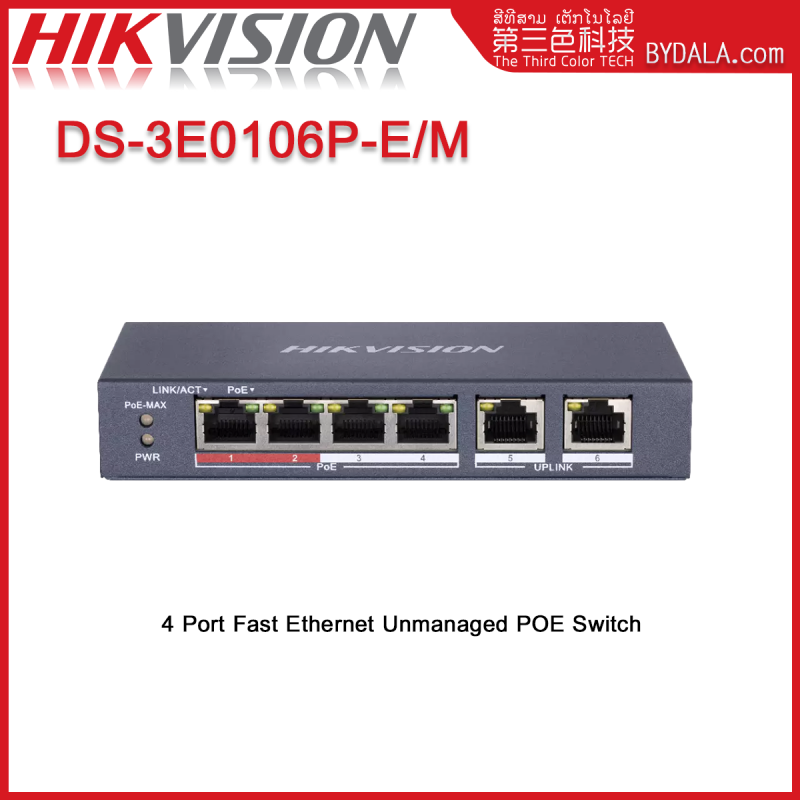

Hikvision DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged POE Switch

Home > >>Hikvision DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged POE Switch
Hikvision DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged POE Switch View larger

Hikvision DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged POE Switch

New product

  • 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports.
  • IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
  • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
  • 6 KV surge protection for PoE ports.
  • Up to 300 m long-range transmission.
  • Wire-speed forwarding.
  • Store-and-forward switching.
  • Solid high-strength metal shell.
  • Reliable fan-free design.

More details

99 Items

550 000KIP tax incl.

Add to wishlist

More info

  • Network Parameters
  • Ports4 x 10/100Mbps PoE ports, and 2 × 10/100Mbps RJ45 ports
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • High Priority PortsPorts 1 to 2
  • MAC Address Table2K
  • Switching Capacity1.2 Gbps
  • Internal Cache768 Kbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af/at PoE standard
  • PoE Port4
  • Max. Port Power30 W
  • PoE Power Budget35 W
  • General
  • Dimensions (W × H × D)145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
  • ShellMetal material, fan-free design
  • Gross Weight0.52 kg (1.15 lb)
  • Net Weight0.27 kg (0.60 lb)
  • Operating Temperature–10 °C to 40 °C (14 °F to 104 °F)
  • Operating Humidity5% - 95%
  • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
  • Storage Humidity5% - 95%
  • Power Supply48V 0.8A
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
