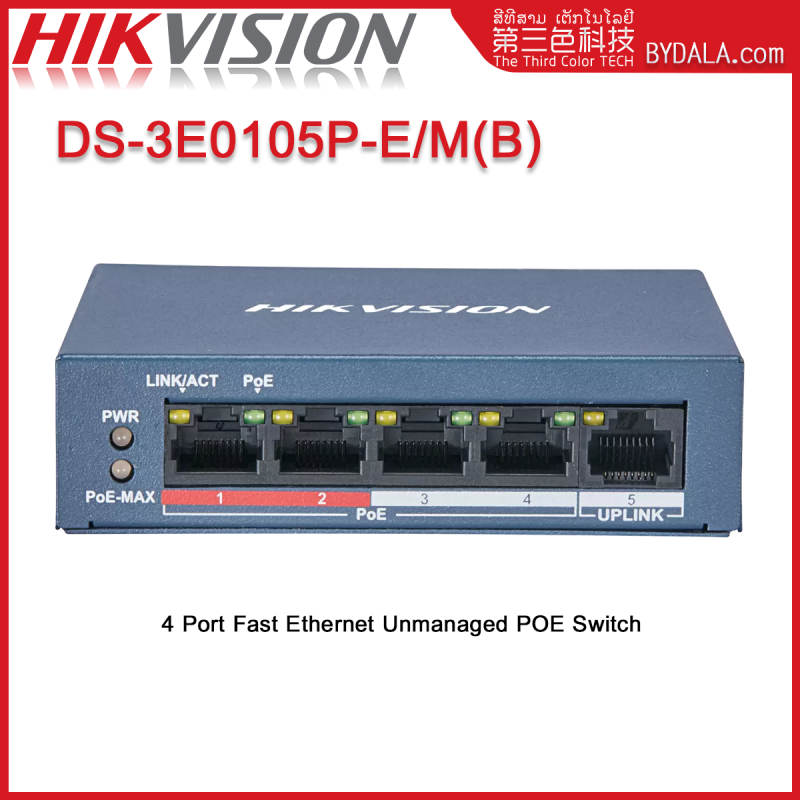

Hikvision DS-3E0105P-E/M(B)(O-STD) 4 Port Fast Ethernet Unmanaged POE Switch

Home > >>Hikvision DS-3E0105P-E/M(B)(O-STD) 4 Port Fast Ethernet Unmanaged POE Switch
Hikvision DS-3E0105P-E/M(B)(O-STD) 4 Port Fast Ethernet Unmanaged POE Switch View larger

Hikvision DS-3E0105P-E/M(B)(O-STD) 4 Port Fast Ethernet Unmanaged POE Switch

New product

  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
  • Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
  • 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.

More details

99 Items

465 000KIP tax incl.

Add to wishlist

More info

  • Network Parameters
  • Ports4 × 10/100 Mbps PoE ports, and 1 × 10/100 Mbps RJ45 port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • Working ModeStandard mode (default); Extend mode
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • High Priority PortsPorts 1 to 2
  • MAC Address Table2 K
  • Switching Capacity1 Gbps
  • Packet Forwarding Rate0.744 Mpps
  • Internal Cache0.768 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin

    End-span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  • PoE PortPorts 1 to 4
  • Max. Port Power30 W
  • PoE Power Budget35 W
  • Dialing Function
  • Long RangePorts 1 to 4: up to 300 m; and the speed rate of the port is 10 Mbps.
  • General
  • Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
  • ShellMetal material, fan-free design
  • Gross Weight0.48 kg (1.06 lb)
  • Net Weight0.20 kg (0.40 lb)
  • Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 0.8 A
  • Power Consumption In Idle3 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
