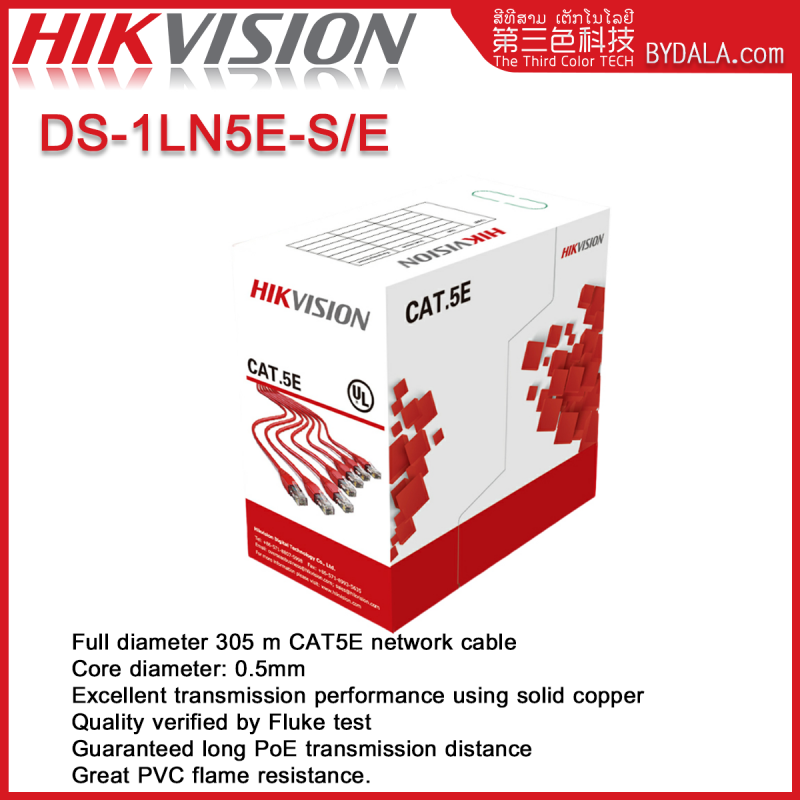

HIKVISION DS-1LN5E-S | 305 m CAT5E UTP Network Cable

HIKVISION DS-1LN5E-S | 305 m CAT5E UTP Network Cable View larger

HIKVISION DS-1LN5E-S | 305 m CAT5E UTP Network Cable

New product

  • Full diameter 305 m CAT5E network cable
  • Core diameter: 0.5mm
  • Excellent transmission performance using solid copper
  • Quality verified by Fluke test
  • Guaranteed long PoE transmission distance
  • Great PVC flame resistance.

More details

99 Items

1 875 000KIP tax incl.

Add to wishlist

More info

  • General
  • Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown,
  • PackingWooden Tray & Carton
  • Carton DimensionPer request
  • Packing Length(305±1.5)m
  • Rip-CordYes
  • Drain WireNo
  • Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.,No visible cracks,
  • Electrical Characteristics (20℃)1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Skew (ns/100m) ≤45,DC ResistanceΩ/100m) max 9.5,DC Conductor Resistance Unbalance(%) max 5.0,
  • Conductor
  • MaterialSolid-Bare Copper,Content 99.95%,
  • Nom.O.D.(Mm)0.500±0.005
  • Insulation
  • MaterialHDPE
  • Diameter0.88±0.04mm
  • Sheath
  • Thickness0.50±0.05 mm
  • External O.D.5.0±0.4 mm
  • SurfaceClean,Frap,Satiation
  • MaterialPVC(complies RoHS),CM
  • ColorGrey ZLC1003
  • Surface Printing
  • Letter Height3.0±0.3mm
  • ColorBlack
  • Print Error & Space≤±0.5%,1m
